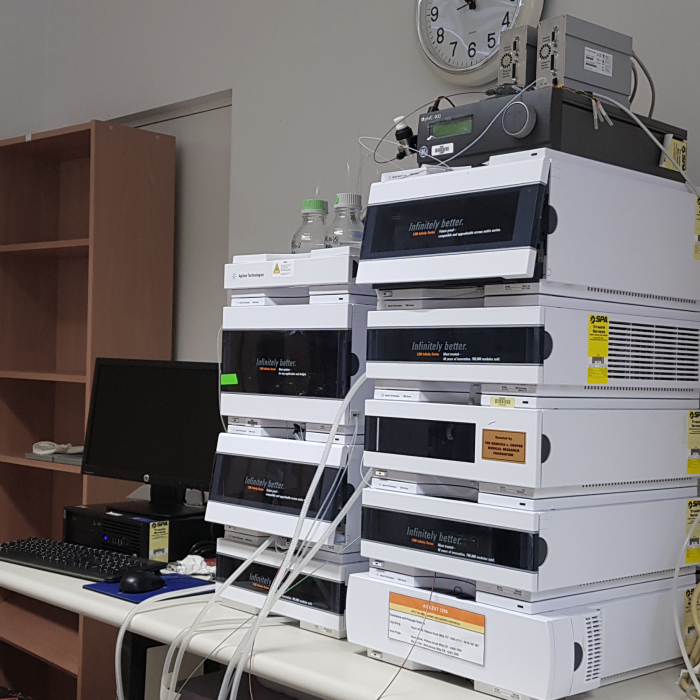

Agilent 1290 UPLC
Description
The Agilent 1290 UPLC system is comprised of binary LC pumps, a peltier cooled autosampler, column compartment with heater, diode array detector, fluorescent detector, pH and conductivity meters and a fraction collector.
Not all of these modules need to be used, and the instrument can be configured based on experimental requirements. The system can be used either as an HPLC or UHPLC.
The BMSF also has a few “generic” columns, but typically users purchase their own purpose-specific columns.
Specifications
Maximum operating pressure
- Up to 1200 bar
Flow range
- 0.001 to 2 mL/min
Injection range
- 0.1 to 20 µL (expandable to 100 µL)
Column capacity
- Up to 4 columns
Detectors
- Diode Array (DAD) and Fluorescence
Other
- pH and conductivity meters
- Fraction collector available
Applications
- Peptide mapping
- Fractionation of complex samples and collection of fractions
- Sample cleanup prior to mass spectrometry
- Removal of high abundance plasma proteins
Instrument location
Bioanalytical Mass Spectrometry Facility
Room 402, Level 4 North West
Wallace Wurth Building (C27)
UNSW Sydney, NSW 2033
