Nikon AXR QPI
Designed for high sensitivity and resolution with spectral scanning capabilities
Description

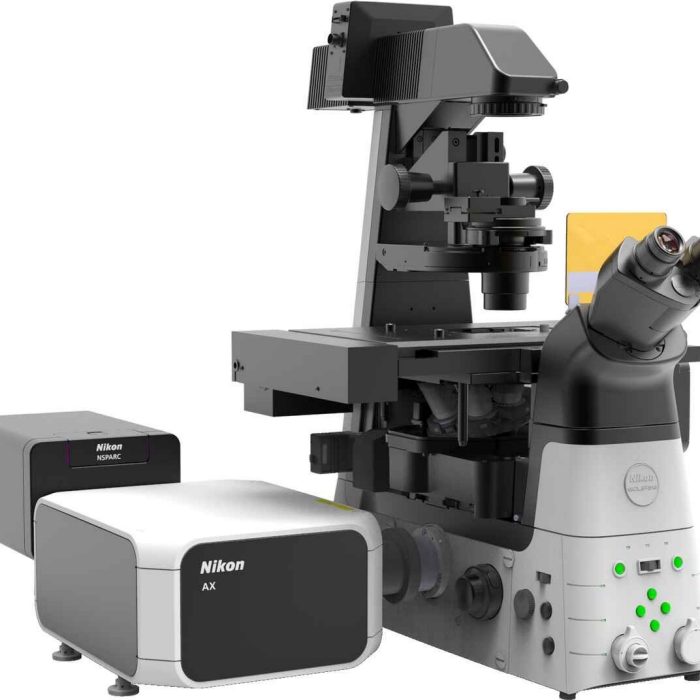

The Nikon AX-R2 is a confocal system that combines 2k x 2k resonant and 8k x 8k Galvano scanning, designed for high sensitivity and resolution with spectral scanning capabilities. Built on the Nikon Ti2-E inverted microscope, it features a large field of view and advanced AI-supported software JOBS and Quantitative phase imaging module.
Specifications
Inverted Microscope body:
- Motorised Stage
- CO2 Stage Insert
- 4 detectors
- 404/488/561/660nm lasers
- Objectives: 10X 0.25 CFI Plan apochromat Lambda S air, 20X 0.75 CFI Plan Apochromat VC air, 40X 0.95 CFI Plan Apochromat Lambda air, 60X 1.20 CFI Plan
- Apochromat VC WI water.
Applications
- Confocal microscopy
- High-speed resonant scanning
- Automated image acquisition with realtime feedback
- Spectral unmixing
- Quantitative phase imaging
Instrument location
Katharina Gaus Light Microscopy Facility
Room LG24, Lower Ground
Lowy Cancer Research Centre (C25)
UNSW Sydney, NSW 2033
