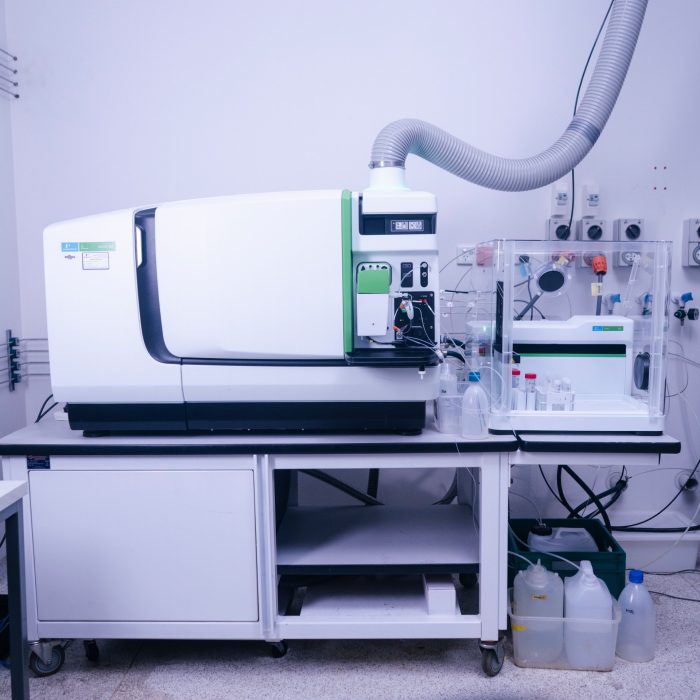

NexION5000 Multi-Quadrupole ICP Mass Spec

Dissolved aqueous sample by spraying an aerosol into a high temperature
Contact facility
Personalise
Inductively coupled plasma lab instrument

Description

An Inductively Coupled Plasma Mass Spectrometer (ICP-MS) measures the elements in a dissolved aqueous sample by spraying an aerosol into a high temperature argon plasma (up to 10,000 degrees Kelvin) and measuring the resulting ions using a quadrupole mass spectrometer. The NexION® 5000 is a multi-quadrupole-based instrument designed to carefully control the ion beam to selectively remove or preferentially measure molecular interferences that form during an IICP-MS analysis.



Specifications

Four quadrupoles:
  • First: Quadrupole Ion Deflector (Q0) directs ions to the entrance of the first mass filter
  • Second: Transmission Analyzer Quadrupole 1 (Q1, full-sized for <0.7 amu mass resolution), acts as a mass filter or as an ion guide to direct ions to the Quadrupole Universal Cell
  • Third: Quadrupole Universal Cell (Q2), empowered by dynamic bandpass tuning, prevents side reactions with residual reaction gases in the cell
  • Fourth: Transmission Analyzer Quadrupole 2 (Q3, full-sized for <0.7 amu mass resolution), acts as a mass filter or as an ion guide to direct ions to the detector.

Detector: Discrete Dynode Software: Syngistix for ICP-MS Detection limits (approx.):0.05ug/l, working solution, 2% nitric and/or HCl (limit may vary depends on elements, concentration, matrix etc.)
Instrument settings:

  • ICP RF Power: 1200-1500.00 Watt
  • Vacuum Pressure: < 8 × 10-6 torr
  • Pauls stage Voltage: (800-1500) volt
  • Analog stage Voltage: -(1700-2300) Volt
  • Plasma gas flow:15-17L/min
  • Auxiliary gas flow:1-2L/min
  • Nebulizer Gas Flow: (0.85-1.2) L/min
  • Lense Voltage: (4-12) volt
  • Cell Gas: He, NH₃, O₂, CH₄

Applications

The ICP-MS performs a wide range of rapid multi-element quantitative and semi-quantitative analysis of trace, ultra trace, heavy metals of:

  • Water, drinking water, groundwater, wastewater with high organics, seawater, water extracts, acid soluble salts.

  • Plant material, animal tissues, food, compost, manure.
    • Volatiles and solvents - Biological serums (blood, saliva, fluid, buffer matrix - Polymers-plastics for elemental impurities - Charcoals, Graphene, graphite-diamond (acid-MW) extract
    • Sediments, sludges, soils, ceramic, quartz: EPA-3051A (acid-MW) extract
    • Soil-agricultural applications
    • Metal and metallurgy: assay, impurities.
    • Experimental (different solution/ solvent extract)

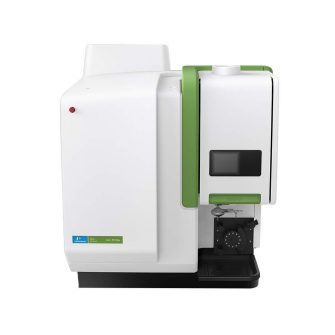

Related instruments

Instrument location

Inductively Coupled Plasma - Elemental Analysis Laboratory (ICP)

Room B36
June Griffith Building (F10)
UNSW Sydney, NSW 2033

Email: icplab@unsw.edu.au

Rabeya Akter

Senior Technical Officer
  • Send email envelope icon
    Email
    r.akter@unsw.edu.au

Khorshed Chinu

Technical Officer
  • Send email envelope icon
    Email
    k.chinu@unsw.edu.au

Parent facility

Inductively Coupled Plasma - Elemental Analysis Laboratory (ICP)

We house ICP instrumentation for elemental analysis, as well as a range of other instrumentation for the analysis of anions, carbon, nitrogen and N-forms in water sample. We also offer researcher access to LC-OCD system for dissolved organic carbon in water.
