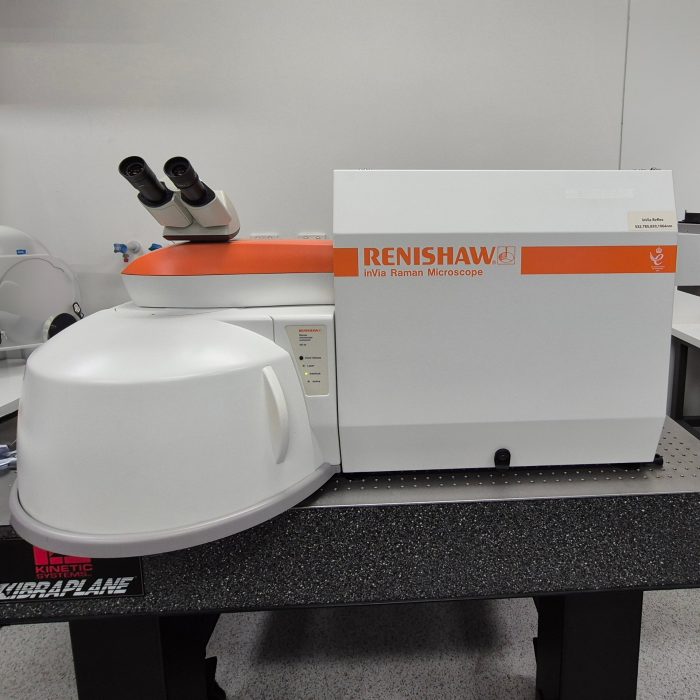

Renishaw- inVia Reflex - Raman Microscope

Offers various laser wavelengths (325 nm, 442 nm, 514 nm and 633 nm) with different gratings (1200 l/mm and 2400 l/mm) for optimal analysis depending on the sample.

Default settings:

• Raman using 532 nm (green) diode laser with 2400 l/mm grating

User configurable settings:

• Raman using 532 nm with 1200 l/mm grating
• Raman using 785 nm with 1200 l/mm grating
• Raman using 830 nm with 1200 l/mm grating


Configurations requiring lasers other than the default:

• Raman using 532 nm with 1800 l/mm grating
• Raman using 532 nm with 3000 l/mm grating
• Raman using 1064 nm with 830 l/mm grating
• Important note: Must be reserved 48 hours prior to booking by contacting the lab via email



• High Resolution: Standard operation provides a laser spot size of 1.5 microns at 50x magnification. Confocal mode can achieve an even smaller spot size of 0.5 microns.
• Fast Imaging Techniques using StreamLine TM which utilises a laser line for rapid image generation.
• Fast Imaging Techniques StreamHR TM which employs a laser spot for high-resolution imaging with pixel sizes as small as 50 nm.
