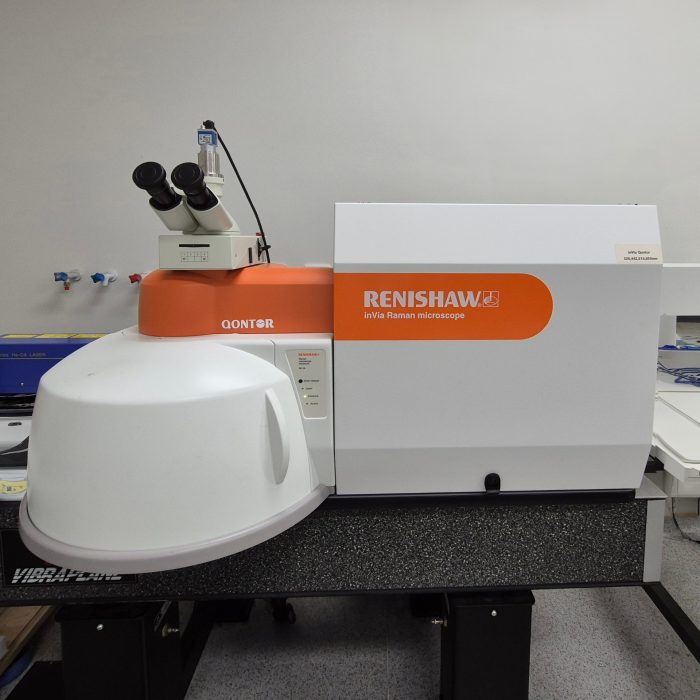

Renishaw - inVia Qontor - Raman Microscope

Offers various laser wavelengths (325 nm, 442 nm, 514 nm and 633 nm) with different gratings (1200 l/mm and 2400 l/mm) for optimal analysis depending on the sample.

Default settings:

• Raman using 514 nm (green) diode laser with 2400 l/mm grating


User configurable settings:

• Raman using 514 nm with 1200 l/mm grating
• Raman using 442 nm with 2400 l/mm grating
• Raman using 633 nm with 1200 l/mm grating
• Photoluminescence at 325 nm with 1200 l/mm grating

Configurations requiring lasers other than the default:

• Raman using 325 nm with 2400 l/mm grating
• Raman using 514 nm with 1800 l/mm grating
• Raman using 633 nm with 1800 l/mm grating


• High Resolution: Standard operation provides a laser spot size of 1.5 microns at 50x magnification. Confocal mode can achieve an even smaller spot size of 0.5 microns.
• LiveTrack TM Technology: Analyses samples with uneven or rough surfaces by maintaining focus in real-time.
• Fast Imaging Techniques using StreamLine TM which utilises a laser line for rapid image generation.
• Fast Imaging Techniques StreamHR TM which employs a laser spot for high-resolution imaging with pixel sizes as small as 50 nm.
