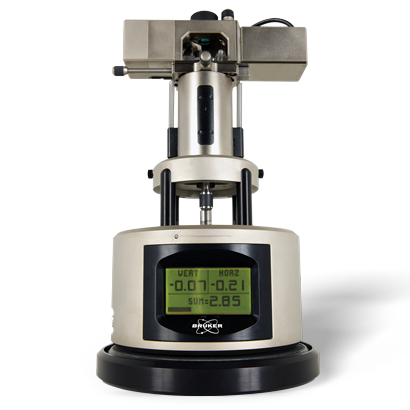

Bruker Multimode 8
Description
The Bruker Multimode 8® (MM8) is an advanced atomic force microscope (AFM) and Scanning Tunnelling Microscope (STM). AFM is a very high-resolution type of Scanning probe microscopy (SPM) which acquires data by “feeling” or “touching” the surface of a sample with a mechanical probe. STM is used to image samples at the atomic level by examining a bias (voltage difference) applied between a conductive probe and a conductive sample.
The MM8 features the Bruker PeakForce Tapping technology, PeakForce QNM (Quantitative Nanomechanical Mapping) for the rapid acquisition of a range of sample mechanical properties including elasticity, adhesion and deformation simultaneously with topography and epifluorescence wide-field microscopy. The MM8 also features the Bruker ScanAsyst® software, automating the optimisation of scanning parameters for users to obtain quality images.
Specifications
- Piezoelectric scanner: E liquid resistant scanner (10 x 10 um2) or A scanner (400 x 400 nm2)
- Sample heater/cooler range -35 to 250C
- Atmospheric hood
- Deflection detection: Super luminescent diode λ = 690nm
- Software: Nanoscope 9.1
- Air Probe Holder
- Liquid Cell
- Electrochemistry Cell
- Gas Cell
- STM Head
- Low Current STM Head
- TUNA module
Applications
Topographic imaging
Quantitative Force-Volume Mapping,
Imaging in Fluid
Conductivity
Lateral Force Microscopy (LFM)
Electrochemistry (EC-AFM and EC-STM)
Magnetic Force Microscopy (MFM)
Electrostatic Force Microscopy (EFM)
Kelvin Probe Force Microscopy (KPFM)
Instrument location
Katharina Gaus Light Microscopy Facility
Room LG24, Lower Ground
Lowy Cancer Research Centre (C25)
UNSW Sydney, NSW 2033
Phone: 02 9065 5306
Email: KGlmf@unsw.edu.au
Dr Alex Macmillan
-
Email
alex.macmillan@unsw.edu.au
Dr Michael Carnell
-
Email
m.carnell@unsw.edu.au
