Zeiss Elyra-7
Description

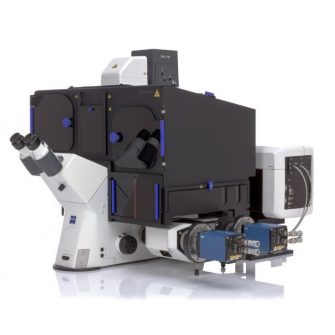

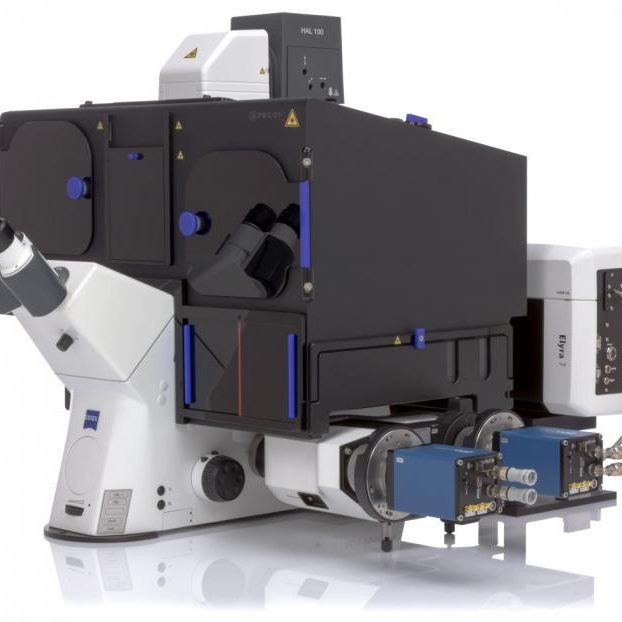

The Zeiss Elyra 7 is a super-resolution microscope that offers multiple advanced imaging modalities, including Lattice SIM for fast, gentle 3D imaging and TIRF for enhanced signal-to-noise. With two fast CMOS cameras, it allows rapid multicolor imaging and is ideal for capturing dynamic biological processes in live samples. The system also supports single-molecule localization techniques like STORM, PALM, and PAINT for high-resolution imaging of fixed samples.
Specifications
-
MAG
N.A
CORRECTIONS
IMMERSION
W.D
10x
0.3
EC Plan-Neofluar
Air
5.2 mm
63x
1.2
C-Apochromat
Water
0.28 mm
40x
1.4
Plan Apochromat
Oil
0.13mm
63x
1.4
Plan Apochromat
Oil
0.19 mm
63x
1.46
Alpha Plan-Apochromat
Oil
0.11 mm
-
- FSet 77 HE
- Transmission Light
- LBF 405/488/561/642
- BP 420-480 + BP 495-550 + LP 655
- BP 495-550 + BP 570-620
- BP 420-480 + LP 655
-
- LP 560
- BP 490-560 + LP 640
- LP 560
-
- 2x PCO-edge sCMOS cameras
- 82% quantum efficiency
- 1280 x 1280 pixels
- 6.5 μm x 6.5μm pixel size
- Dynamic range 16 bit
Applications
- EPI/HiLO/TIRF imaging modalities
- 2 color fast live cell imaging
- Single-molecule localisation microscopy (SMLM) -STORM,PALM,PAINT
- Lattice SIM and Apotome imaging
