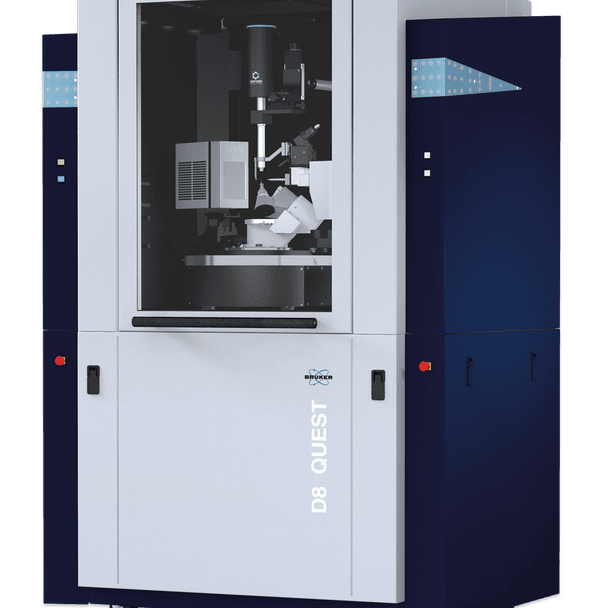

Bruker D8 Quest Diamond Single Crystal XRD (Mo source)
Mo source single-crystal XRD with the latest Photon IV detector for quick crystal structure analysis
Description
The installation of our new D8 QUEST marks a new era for our research centre.
The hybrid diamond technology in our new X-ray source delivers intensity comparable to rotating-anode-level intensity but with virtually no maintenance. The large-area PHOTON IV detector perfectly matches the high-intensity X-ray source. Even for our typically thin micro-crystals, we obtain high-quality datasets in just 15–20 minutes.
Specifications
- 4-circle goniometer
- Shutterless Photon IV detector
- IµS DIAMOND II microfocus Mo Kα source
- Oxford Cryostream 1000 series low-temperature device (80- 400 K)
Applications
- Small-molecule crystallography (especially organometallic and coordination complexes and high-absorbing crystals)
- Structural analysis of weakly diffracting samples
- Detection of twinning and disorder
- Variable-temperature crystallography
Instrument location
Chemical Crystallography Lab
Room G63
June Griffith Building (F10)
UNSW Sydney, NSW 2033
Ruoming Tian
-
Email
r.tian@unsw.edu.au
Mohan Bhadbhade
-
Email
m.bhadbhade@unsw.edu.au
