PANalytical MRD XRD
Flexible X-ray diffraction system
Description

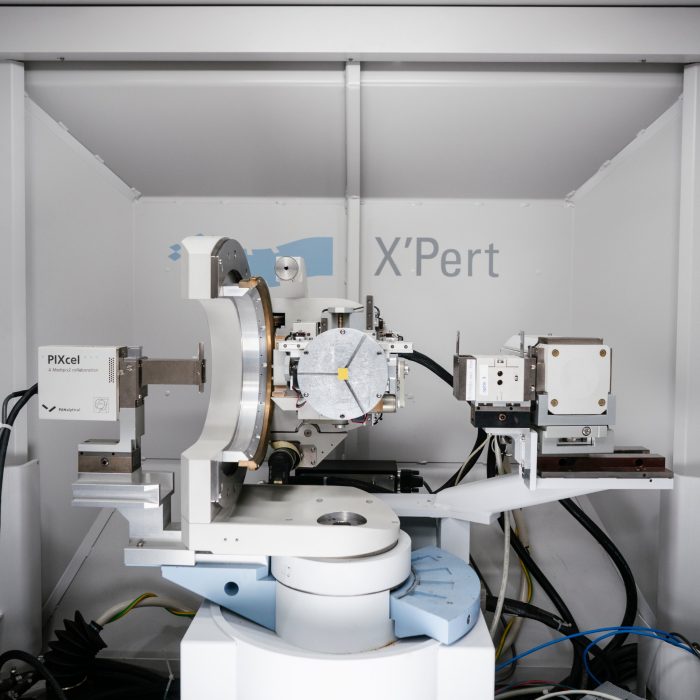

The Panalytical Xpert Materials Research diffractometer (MRD) system is a flexible X-ray diffraction system for analysis of thin films, nano-structures, semiconductor materials, stresses and textures.
Specifications
- 3 kW Cu anode with Eulerian cradles for precise and reproducible, unobstructed movements for sample rotation, tilt and x-, y- and z.
- MRD Setting 1 - high resolution module with the X-ray mirror + Ge (220) monochromator, used for rocking curve, reciprocal space mapping.
- MRD Setting 2 (normal) - medium resolution module with the X-ray mirror and collimator, used for thin film analysis and phase identification.
- MRD Setting 3 - low resolution module with the Cu tube, X-ray lens and collimator, used for analysis of textures and stresses and phase identification.
Application
- Configurable for phase identification, stress/texture analysis, and X-ray reflectivity.
- Used for thin film and nanomaterial research; identifies 20 nm polycrystalline phases.
- Vacuum Stage for 8-inch wafer samples; max thickness: 9 mm (standard), 4 mm (vacuum).
