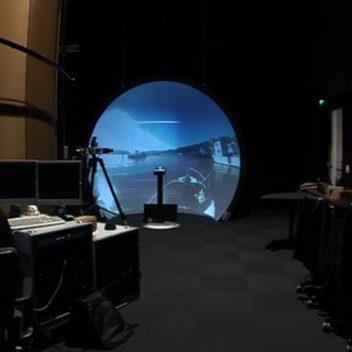

iDome is a proprietry hardware/software platform developed by the iCinema Centre that offers a cost-effective and compact immersive visualisation environment for panoramic and spherical representations, video and/or computer generated. Ideally suited for museological applications, it is configured as a three to five meter fibreglass hemisphere that stands vertically in front of the viewer, with a projector, computer, surround audio equipment and user interface.
Projection system
The iDome utilises a three meter fibreglass dome as the surface for 180 degree projection made possible by a high-resolution projector and a spherical mirror as reflection surface. Size and shape of this projection set-up covers the peripheral vision of the user standing directly in front of it and thus results in a truly immersive experience.
This approach has advantages over the “projector with fish eye lens” set up, used for the installation Conversations@the Studio at the Powerhouse Museum Sydney. It does not require a large projector stand (which partly blocks the view), is much more cost effective and can take advantage of even higher resolution projectors when they become available.
Close me

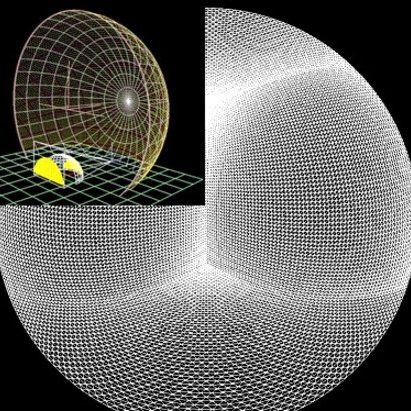

Simulation of mirror projection and its distrortion mesh. Concieved and calculated by Paul Bourke.
- Overview
- Exhibition
- Credits
ARC Investigators: Dennis Del Favero, Jeffrey Shaw, Neil Brown, Volker Kuchelmeister, Nikos Papastergiadis, Scott McQuire, Andy Arthurs, Sarah Kenderdine, Kevin Sumption, Grace Cochrane
Project Directors: Dennis Del Favero, Jeffrey Shaw, Volker Kuchelmeister, Adrian Hardjono, Matthew McGinity
Programmers: Volker Kuchelmeister, Adrian Hardjono, Matthew McGinity
Project Funding: ARC LP0453638, Questacon/Scitech, University of Wollongong, Bourke Museum
2006-2010
- Powerhouse Museum, Sydney, 2010
- Darling River Journey, Back of Bourke Exhibition Centre, 2009
- Australasian Planetarium Society Conference, Horizon Planetarium, Perth, 2008
Project Directors: Jeffrey Shaw and Dennis Del Favero
Production and Technical Co-Ordinator: Volker Kuchelmeister
Mirror Projection Geometry: Paul Bourke
Playback Engine: Joachim Tesch, Jared Berghold
Production Manager: Damian Leonard
Hawkesbury River Footage: Volker Kuchelmeister
Sound Recording: Nick Mariette
